循环润滑给油系统 Circulating lubrication oil supply system
1组 1 group
空气源接头 Air source receptacle
1组 1 group
维护工具及工具镜 Maintenance tools and toolboxes
1组 1 group
使用说明书及精度检验成绩表 Operating instructions and precision
1组 1 group
特殊附属配置 Standard accessory configuration
光电保护配置 Photoelectric protection configuration
1组 1 group
误送检知配置 Misfeed detection configuratior
1组 1 group
过载保护装置 Ocerload protection device
1组 1 group
自动喷风装置 Automatic airblower
1组 1 group
滚轮送料机 Roller feeder
1组 1 group
平面送料机 Flat feeder
1组 1 group
锝密材料矫正机 Precision Straightener
1组 1 group
油压锁定系统 Oil pressure locking system
1组 1 group

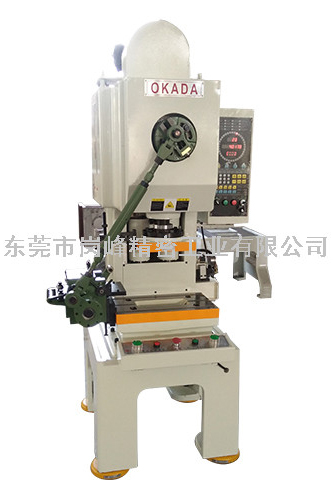

Product features
Gf series of triple-column high-speed precision punchesfeature significant performance advantages,such as highprecision, safety, high speed and low noise, etc
1. The machine platform body is made of high strength castiron, with little deformation due to crankshaft force, andimported high precision bearings
2. Special design of crankshaft support, small deformation ofcrankshaft, imported high precision bearing;
3. The sliding block body is made of ductile iron, which hasbeen tempered; The sliding block motion adopts double longguide column combined with large central guide Columnstructure, strong bearing capacity, high operating precision
4. Automatic locking function of slider(special type)
5. Dynamic balance device with backside load can effectivelybalance the vibration of the press during high-speed operationand reduce the noise of the press operation;
6. Pneumatic clutch brake system, safe and reliable; Theforced circulation lubricating oil device ensures the accuracyand stability of the high speed running of the machineplatform, with extremely low wear and service life of themachine platform
7. Humanized design of the whole press, electronic monitoringsystem, self-diagnosis of mechanical abnormality, screen display
